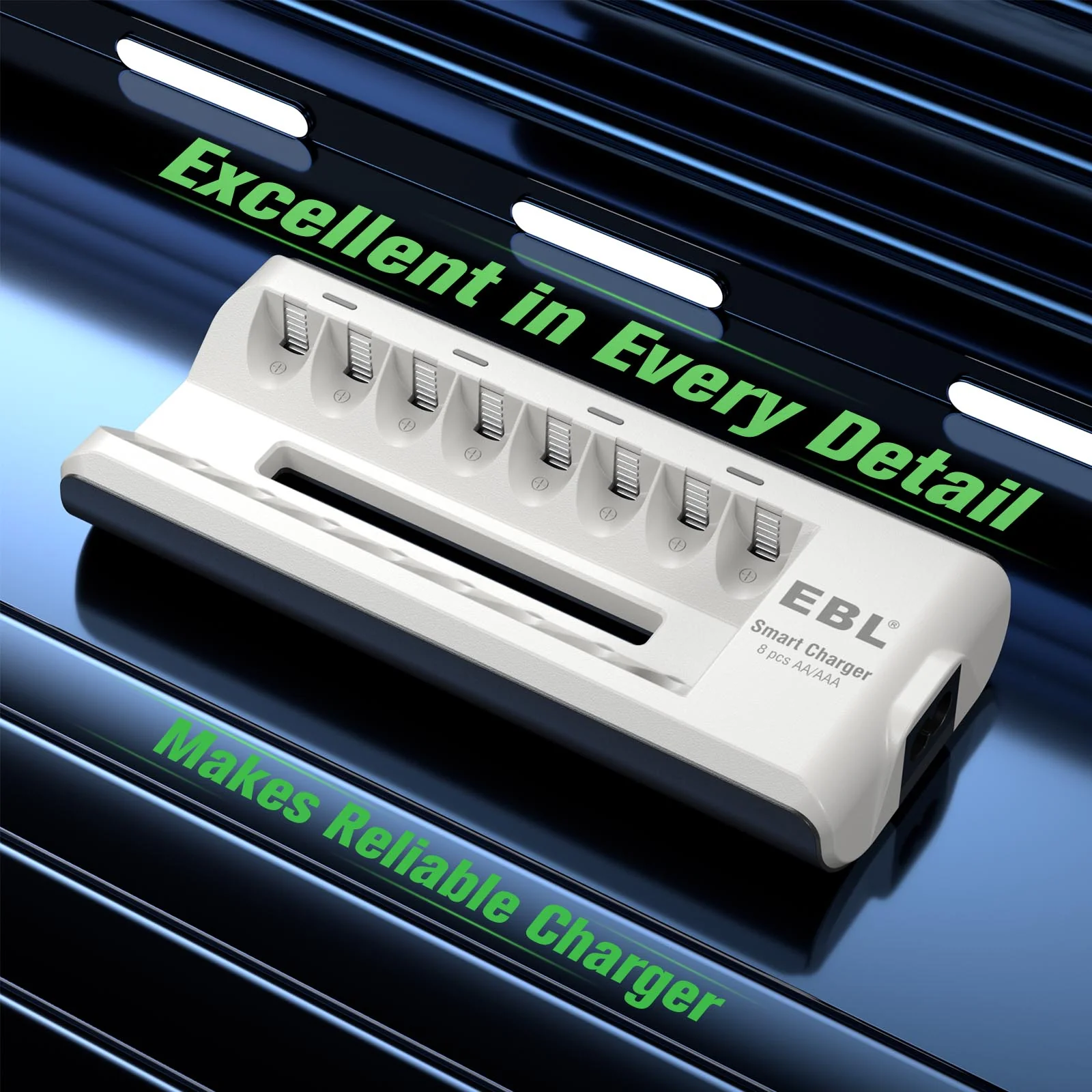

AA AAA Battery Charger: Advanced fire-proof material has been apdoted to this EBL 808A rechargeable aa aaa batteries charger - freely working for 2/4/6/8 Ni-MH Ni-Cd AA AAA rechargeable batteries in pairs. (Do not charge alkaline or Lithium batteries)

Smart LED Indicator: 8-Bay battery charger with smart LED to show its charging progress: Red Light-Charging; Green Light -Fully Charged; Red LED Flash: a bad battery or non-rechargeable batteries.

Patent Trickle Charge Mode: Constant current charging would protect the 1.2V batteries against current fluctuation and keep using the aa aaa rechargeable charger safely.

Advanced MCU Control: Controlled by MCU, automatically stop charging when detecting improper input voltage, defective or short circuit or non rechargeable batteries.

Charging Time Table:

• 2 to 8pcs AAA 500-1200mAh: 1.5 - 4 hours (180mA output)
• 2 to 8pcs AA 1300-2800mAh: 1.5 - 8 hours (200mA output)

Specification

Model No.	808 Battery Charger	Brand	EBL
Compatible	2/4/6/8 AA AAA Ni-MH Ni-CD rechargeable batteries
Input	AC 100-120V AC 50/60Hz	Output	DC 2.4V 1000mA
Dimensions of charger	180*77*28mm	Weight of charger	172g/6.07oz

Attention

• Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the charger.
• Never mix charge different type and different capacity of batteries under the same LED indicator.
• Using environment: 0℃ to 40℃, it is normal phenomenon that the battery is warmer than room temperature when charging.
• Do not disassemble or reassemble the charger by yourself for safety reason.

Note: A light corresponding to two slots is Series charging, a pair of batteries charged in series, needs to be the same brand of the same size and capacity of the battery.

What You Get

• 1 * EBL 808 battery charger
• 1 * User manual
• 1 * AC power cable
